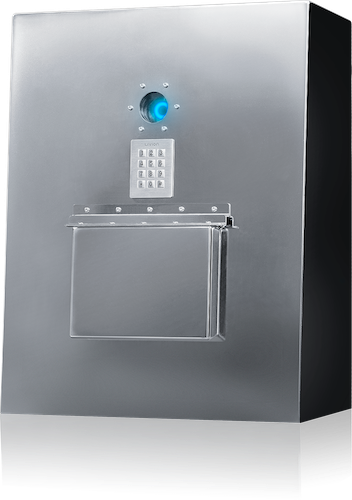

LivionKey30 Outdoor Product

LivionKey30 Outdoor Smart Key Cabinet

A weatherproof wall-mounted smart key management device with 30-key capacity, dual cameras, advanced security features, and comprehensive connectivity options for outdoor automated key management.

Technical Specifications

Physical Specifications

Dimensions (W x H x D)255 x 513 x 618 mm
WeightApproximately 41 kg
Capacity30 lockers
Locker Dimensions (W x H x D)40 x 60 x 120 mm
Operating Environment-40°C to +40°C
InstallationWall-mounted using the provided wall bracket and screws
Environment TypeOutdoor environments with weather protection
Protection ClassIP43
CertificationCE

Power Supply

230VAC Power Supply230VAC plug-in with cable (included)
Battery BackupUp to 6 hours backup (dependent on usage and temperature)

Connectivity

WLAN2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac
4G LTE4G LTE Cat-4 (subscription included)
API IntegrationRESTful API

Key Features

Dual CamerasFront-facing and internal locker cameras
Theft DetectionIntegrated sensors detect potential burglary attempts
Weatherproof DesignIP43 rated for water and dust resistance

Shipment Includes

  • LivionKey30 Outdoor
  • 230VAC plug-in power supply
  • Wall bracket + mounting accessories
  • 2 keys for wall bracket lock
  • LivionKey30 Outdoor Quick Start Guide (for installation and software)
  • Warning labels for recording camera surveillance

Device dimensions

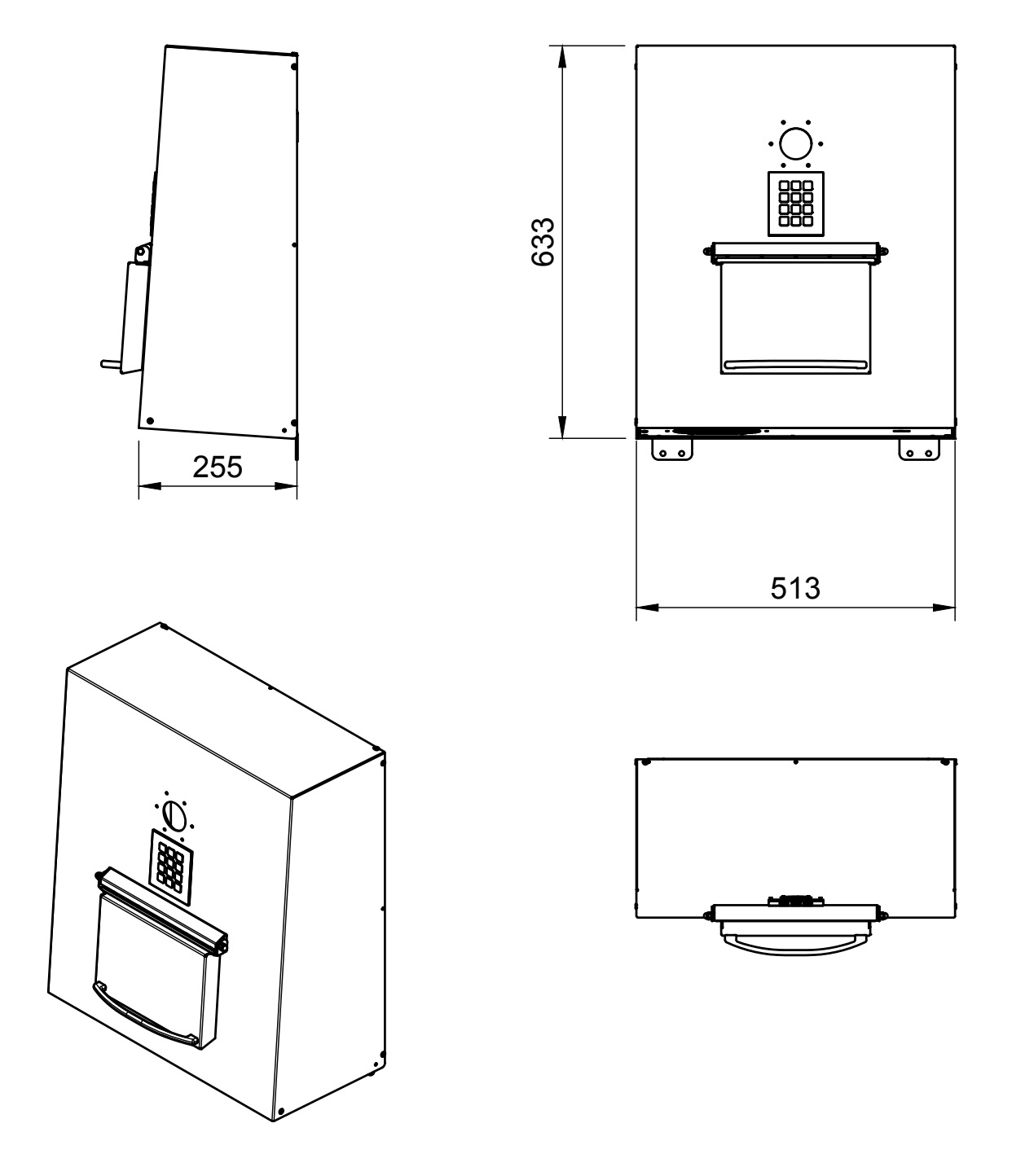

LivionKey30 Outdoor Device Dimensions Schematic

Wall Bracket

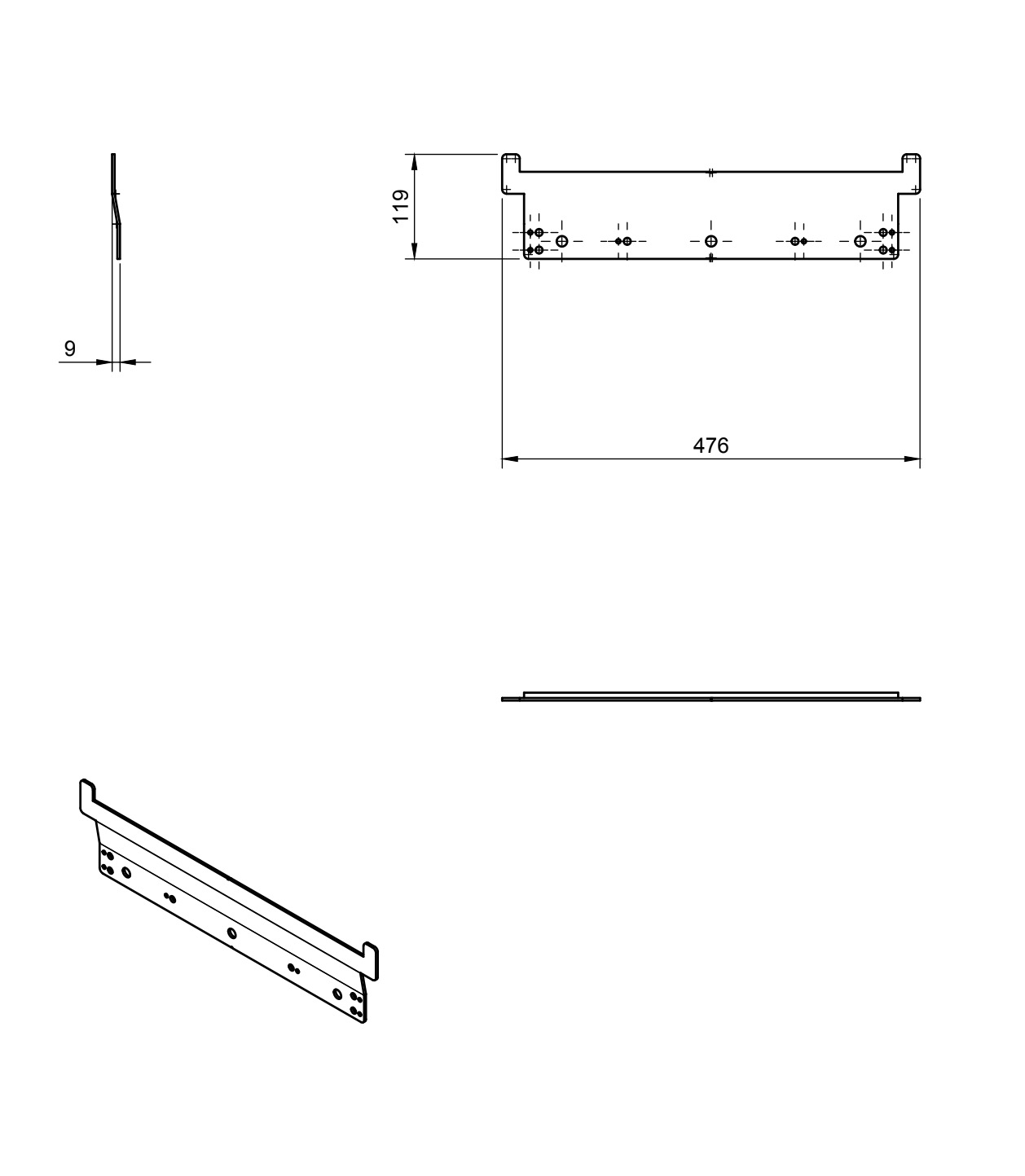

LivionKey30 Outdoor Wall Mount Schematic
