LivionKey30 Product

LivionKey30 Smart Key Cabinet

A wall-mounted smart key management device with 30-key capacity, dual cameras, advanced security features, and comprehensive connectivity options for automated key management.

Technical Specifications

Physical Specifications

Dimensions (W x H x D)136 x 445 x 522 mm
Weight19.5 kg with wall bracket
Capacity30 lockers
Locker Dimensions (W x H x D)40 x 60 x 120 mm
Operating Environment+10°C to +40°C
InstallationWall-mounted using the provided wall bracket and screws
Environment TypeDry, non-condensing indoor environments
Protection ClassIP20
CertificationCE

Power Supply

230VAC Power Supply230VAC plug-in with cable (included)
Battery BackupUp to 10 hours backup (usage dependent)

Connectivity

WLAN2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac
4G LTE4G LTE Cat-4 (subscription included)
API IntegrationRESTful API

Key Features

Dual CamerasFront-facing and internal locker cameras
Theft DetectionIntegrated sensors detect potential burglary attempts

Shipment Includes

  • LivionKey30
  • 230VAC plug-in power supply
  • Wall bracket + mounting accessories
  • 2 keys for wall bracket lock
  • LivionKey30 Quick Start Guide (for installation and software)
  • Warning labels for recording camera surveillance

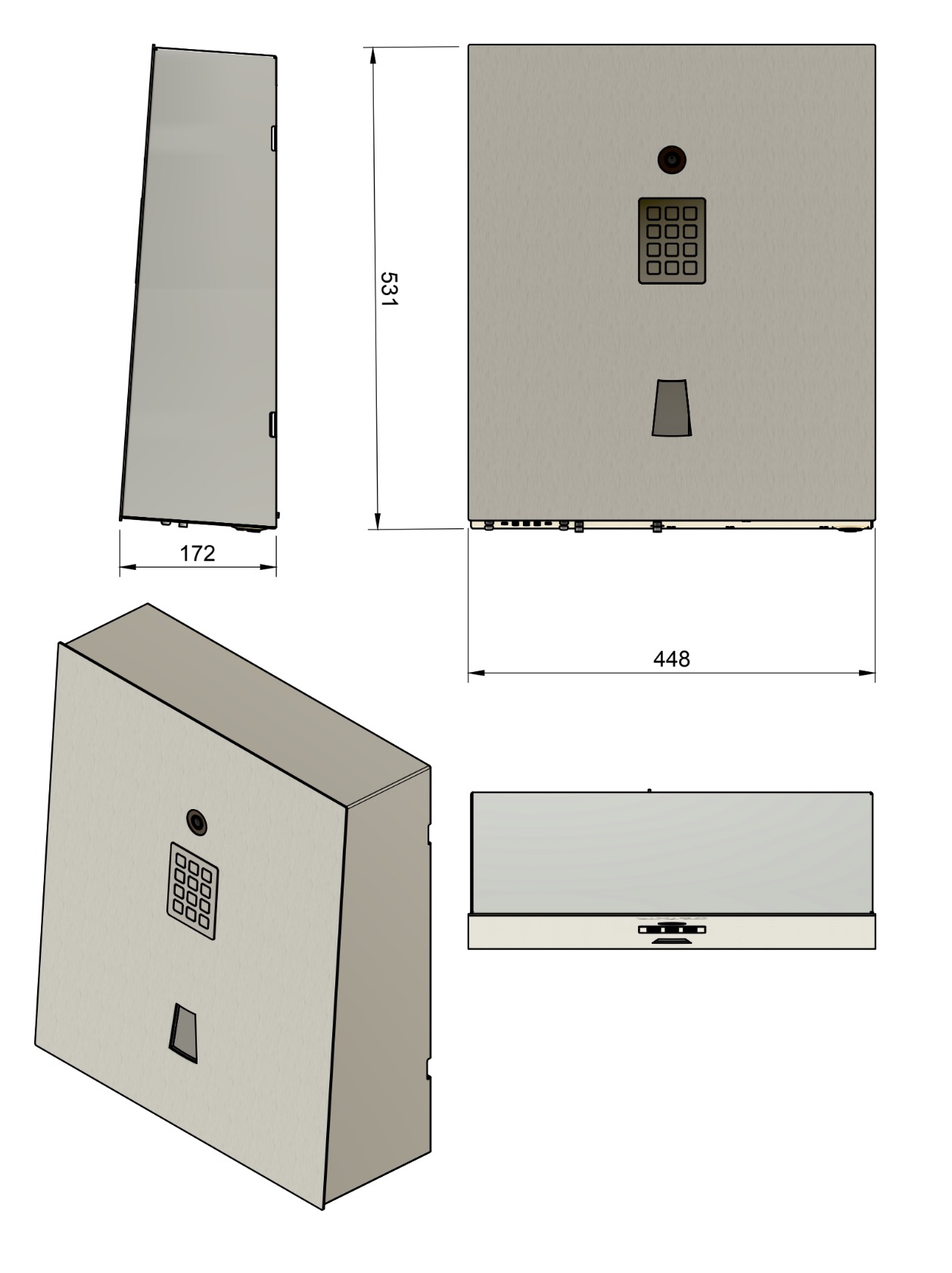

Device dimensions

LivionKey30 Device Dimensions Schematic

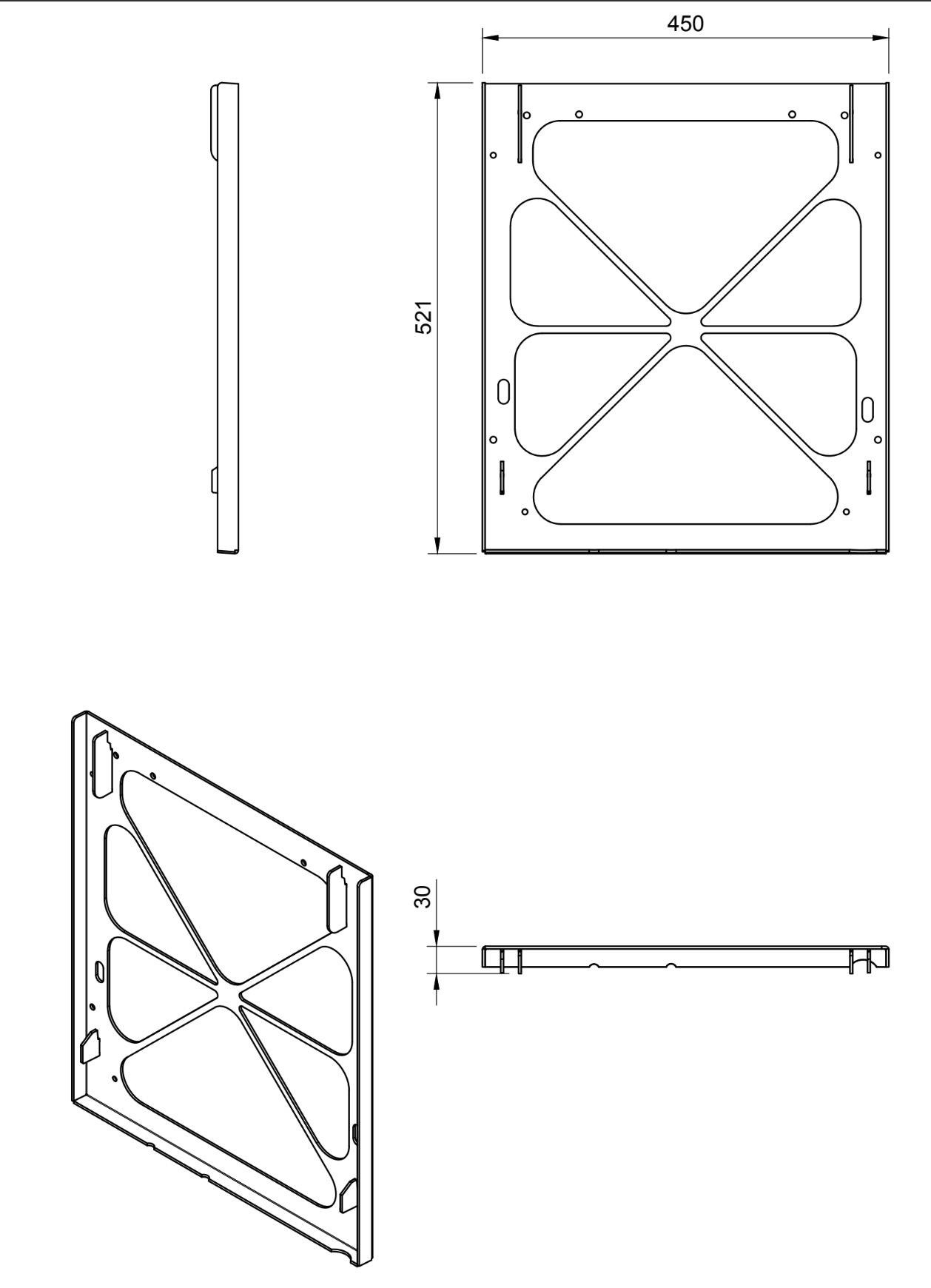

Wall Bracket

LivionKey30 Wall Mount Schematic
