Technical Specifications
Physical Specifications

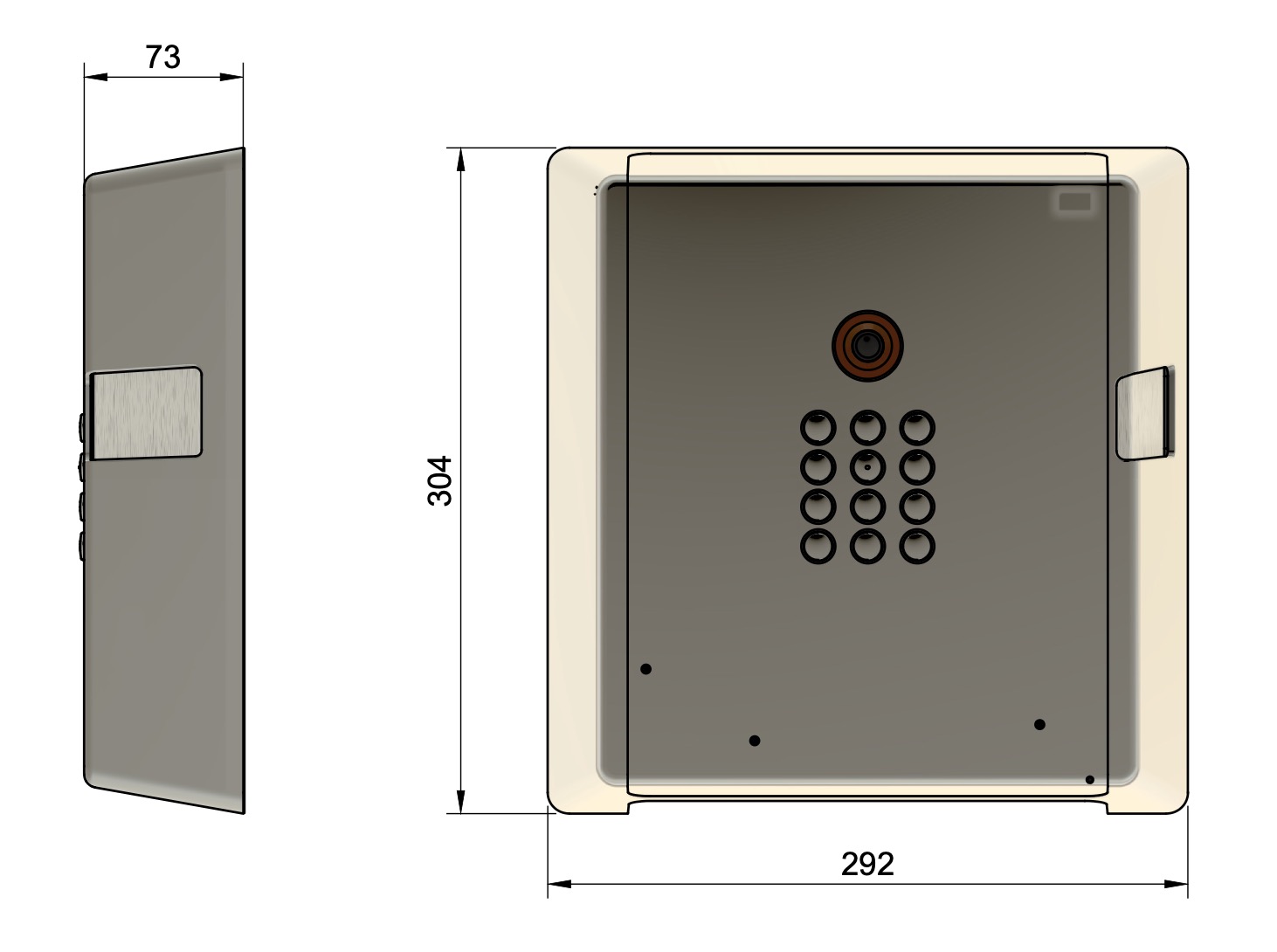

Dimensions (W x H x D)292 x 304 x 77 mm
Weight5 kg
Capacity20 keys
Operating Environment+5°C to +40°C

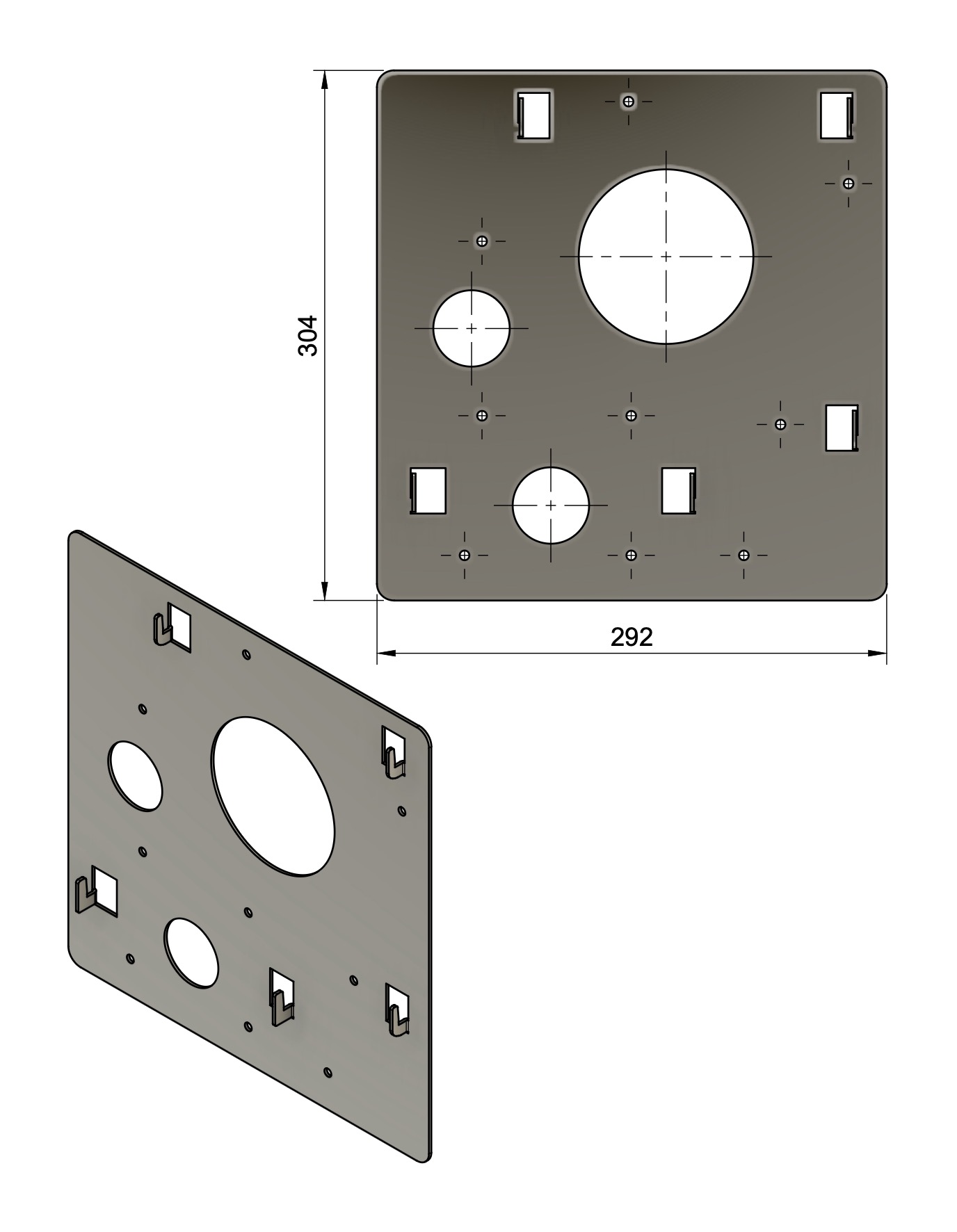

InstallationWall-mounted using the provided wall bracket and screws
Environment TypeDry, non-condensing indoor environments
Protection ClassIP20
CertificationCE
Power Supply
230VAC Power Supply230VAC plug-in with 5m cable (included)*
Battery BackupUp to 6 hours backup (usage dependent)
* Optionally, the device can be powered by an external 18–24 VDC supply with a minimum output power of 15 W.
Connectivity
WLAN2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac
Ethernet10/100 Mbps port
4G LTE4G LTE Cat-4 (subscription included)
NFC Readers (2pcs)13.56 MHz RFID/NFC
API IntegrationRESTful API
Additional Features
Front-Facing CameraCaptures and stores images and videos
Theft DetectionIntegrated sensors detect potential burglary attempts
Shipment Includes
- •LivionKey20
- •230VAC plug-in power supply
- •Wall bracket + mounting accessories
- •LivionKey20 Wall installation guide
- •LivionKey20 SW Quick Start guide
